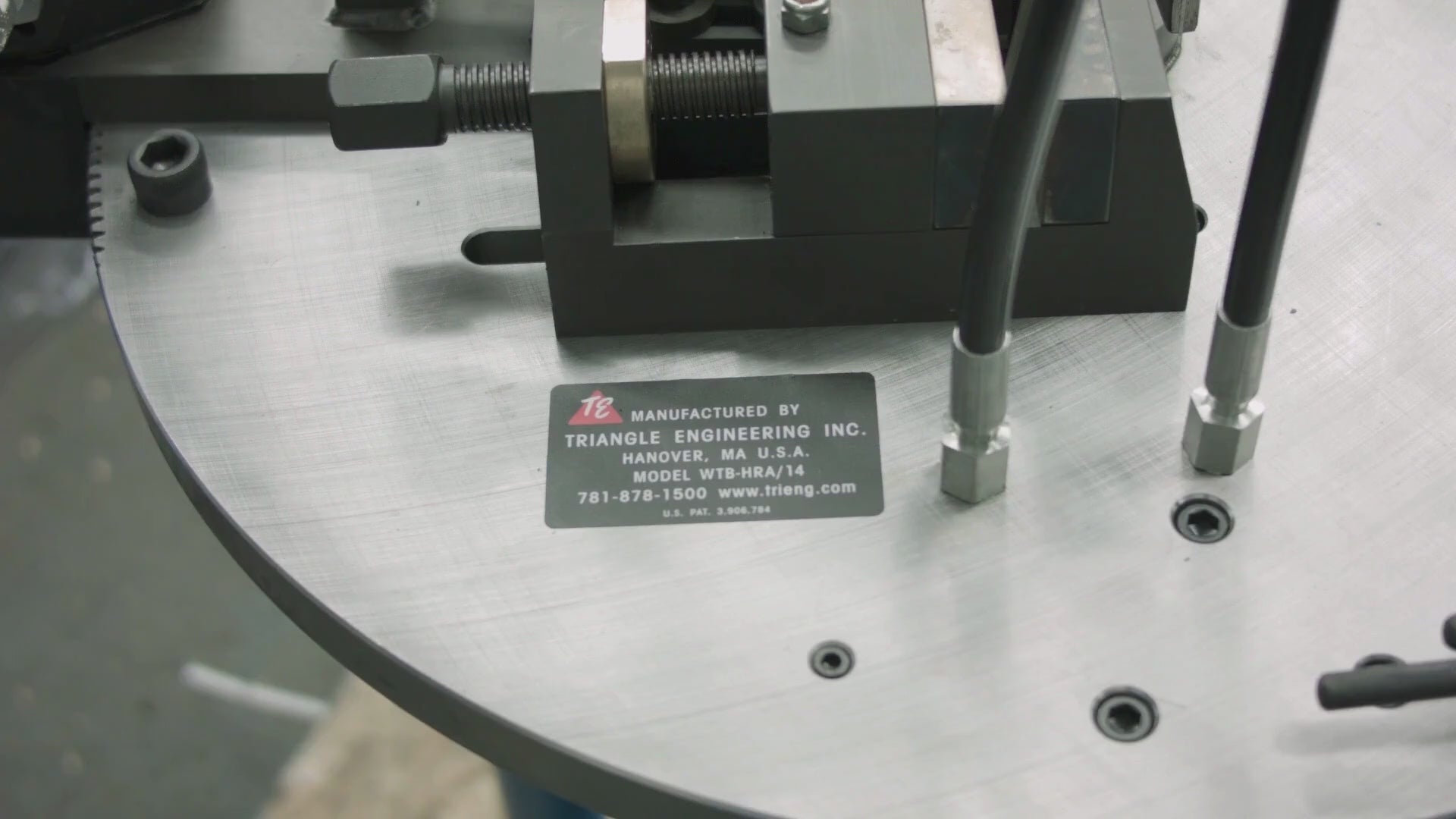

Hydraulic Wrap Around Bender, WTB-HRA

SKU: WTB-HRA

Price:
Sale price$10,800.00
Stock:
In stock

Description

This machine was designed and developed by Triangle Engineering to bend a welded metal specimen into a 180 degree "U" shape, thereby subjecting the weld deposit to extreme tension, commonly referred to as a bend test.  The full range of ferrous and nonferrous bend test requirements of A.S.M.E. Section IX and A.W.S can be met with the adjustability of this machine.

  • This machine performs guided bend testing of weld specimens using wrap-around method, which eliminates undue stress on specimen during bending.
  • Bending arm powered by hydraulic motor, eliminating blown circuits.
  • Heavy, rugged construction provides long service life in adverse conditions.
  • Bending posts available from .125" to 4" diameter.
  • Quick change tooling design makes interchanging bending posts fast.
  • Conveniently plugs into 110 volt outlet for self-contained hydraulic system.
  • Comes with one 1-1/2" Diameter Die Post.

Are you shopping for an educational institution? Eligible institutions can save 5% on this product. Click this link to learn more and get verified to receive the discount.

SPECIFICATIONS:

Electric Motor:  1 H.P., 115V, 1PH, 60HZ, 13A, 1725 RPM
Hydraulic Pump:  1500 PSI, 1-1/2 GPM
System Pressure:  Factory set @ 1050 PSI
Hydraulic Oil:  AW32, 5gal capacity
Vise Jaw:  HT AISI S7
Die Post:  HT AISI 4140
Drive Gear:  HT AISI 4140
Size:  36" x 36" x 34"
Weight:  380 lbs.

U.S. Patent 3906784

This item requires 5-7 business days to make ready to ship

Click here to read the Hydraulic Wrap Around Bender Manual

Click here to review the Destructive Testing Equipment Price Sheet
